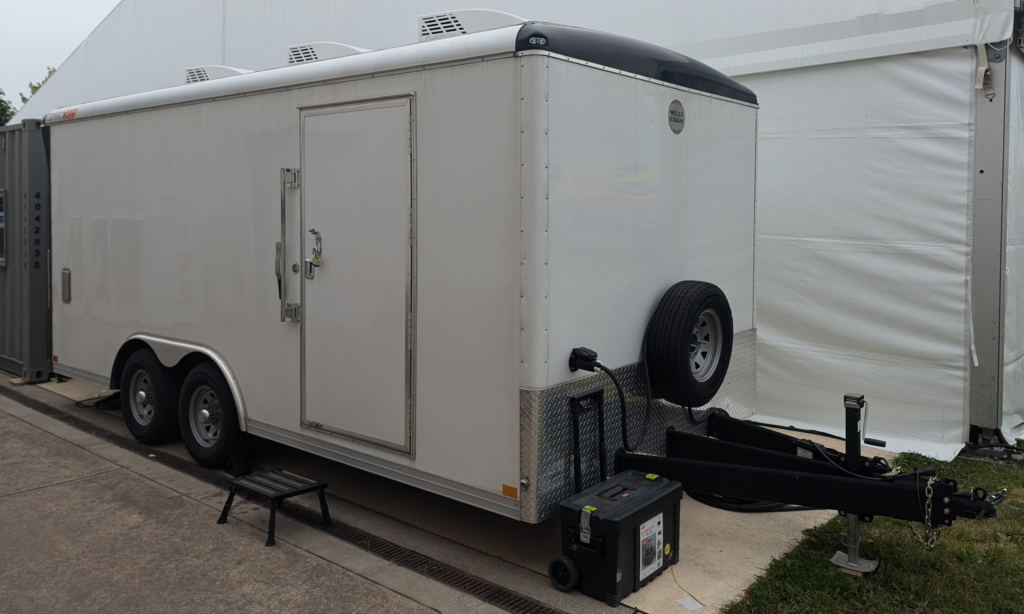

Production Truck HD-3

HD-3 is a compact but mighty, 18ft HD production truck, 1080i, 720P switchable, designed to produce high-end broadcasts with a small footprint. HD-3’s equipment complement includes: Ross Carbonite 2.5ME Switcher, Sony HXC-D70 Triax Cameras, Newtek 3play 3p2 Replay Servers, RTS Zeus Intercom and IFB.

• 1080i/720p switchable
• Ross Carbonite 2.5M/E HD production switcher
• 2.5 M/E with 4 Mini M/E’s
• 4 Channel Internal Still-Store
• Hyperdeck Mini SpotBox
• Lance Design TDC-100 disk controller

CAMERAS

• 5 Sony HXC D70 Triax Cameras  (720p/1080i)
• 5 Sony RCP170
• 2 Marshall CV-502 HD Cameras (POV / Slam Cam)
• 2 Canon XA25 Scoreboard / Snoop Cameras

LENSES

• 1 Canon 70×9 Sports Lens
• 1x Canon 55×9.5 Sports lens
• 4 Fujinon 20×8.5 HD HH Lens
• 1 Fujinon 13×4.5 HD Wide Angle Lens On Request

REPLAY/RECORDING

• 3play 3P2 10 Channel instant replay server (8 In – 2 Out)
• 2 BMD Hyperdeck Studio hard drive recorder
• 1 VMix HD Web Encoder System

GRAPHICS

• Ross Xpression CG
• Chyron – On Request
• VizRT Trio – On Request
• Wired for Foxbox/TV Graphics

CAMERA SUPPORT

• 3 Vinten Vector 700 Panheads
• 3 Sachtler Ob2000 Heavy Duty Sticks
• 4 Miller Arrow 55 Tripods
• 6 Manfroto Magic Arms

COMMUNICATIONS

• RTS Systems Zeus Matrix Intercom System
• Studio Technologies 4CH IFB Interface
• 3x RTS SSA-424 Party Line Interfaces (5 Total PL Channels)
• RTS TIFF-2000 Telco Interface
• JKaudio Innkeeper Digital Hybrid
• RTS KP-32, KP-12 Key Panels

TERMINAL

• AJA FS1 Transmission Embedder
• AJA FS2 2 Channel Frame Sync / Proc Amp
•  3- 500′ TAC-4 Fiber (ST Termination)
• 1- 1000′, 1- 500′ TAC-12 Fiber (ST Termination)
• 5 AJA Fido Kits
• BMD Videohub Router 40×40

AUDIO (INTERNAL)

• Behringer X32 Digital Audio Console
  40 Mic Inputs – 16 Audio Outputs
• Soundcue iPad Digicart System
• Wohler Monitoring

AUDIO (EXTERNAL)

• 4 AudioTechnica BP-100 Sportscaster Headsets
• 4 Sennheiser MD46 Hand Mics
• 2 Shure VP64AL Hand Mics
• 3 Sony ECM77B Lavs
• 12 Audio Technica AT8035 Shotgun Mics
• 6 Telex BP325 Dual Belt Pack
• 6 Beyer DT108 Headsets
• 6 Beyer DT109 Headsets
• 3 Daltech TB-2 announce consoles
• Lectrosonics Wireless IFB Kit
• Shure ULDX Wireless Mic Kit
• Mamba Booth over Fiber Kit

DIMENSIONS

• Trailer Only 8.5′ x 18′; Tractor/Trailer Combo 8.5′ x 32′
• 13,500 lbs

POWER REQUIREMENTS

• 240 VAC Single Phase 60 Amp
  (20 Kva Generator or Larger)
